Piezoelectricity is the conversion of electrical pulses to mechanical vibrations, and vise-versa, the conversion mechanical vibrations back into electrical energy.

Adding a force to the material (like squeezing it), will create an electrical current, while pulling it apart, or releasing the stress, creates a current in the opposite direction. The fact that these materials can produce currents in two different directions is a characteristic unique to piezoelectrics.

The first picture represents a piezoelectric material 'at rest'. The structures of piezoelectric materials are electrically stable when not under pressure. Therefore the electrons are free flowing throughout the material, giving the piezoelectric effect a neutral charge. When a force is applied to the piezoelectric material and it is compressed, in this case PZT (Lead zirconate titanate), the electrons align to the polar surfaces of the material depending on the objects original orientation. This charge on the surface of the material can then be transferred, via circuitry, through a conductor to a storage device, such as a capacitor, that can in turn discharge the stored energy to a device requesting the electrical potential for its purpose.

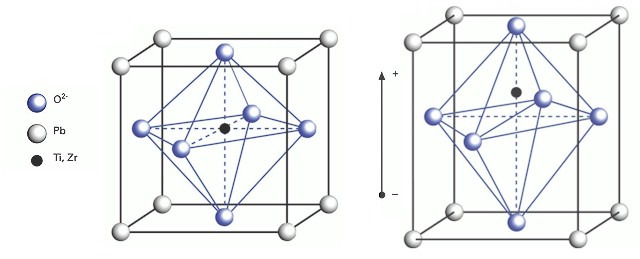

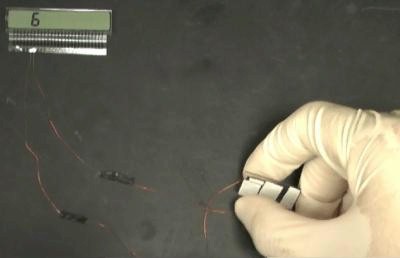

PZT is a man-made piezoelectric ceramic material made of Lead, P, zirconium, Z, and Titanium, T. The special function that allows PZT to be more conductive than any of the other ceramics in the same field is that when placed under tension or compression, the titanium atom shifts within the cubical structure of the lead zirconium, creating an extensively strong pole and provides a better flow of electrons to surface wires.



This better flow makes it a more efficient conductive material. This ceramic gives a larger power output than other forms of piezoelectric transducers (i.e. ratio of plastic piezoelectrics is (PVDF) produce 1.3 mW and PZT produces 8.4).

The concept of harvesting power from piezoelectric materials is a relatively new idea. Although harvesting power from footsteps has been researched, it has not been implemented due to a low power supply. DARPA's Heel-Strike Generator for Soldiers used foot strike technology to produce close to 1-2 watts of power per foot strike. MIT's project of Crowd Farming produced enough power to keep two 60-watt light bulbs lit for one second. Microstrain Technologies developed a system to harvest energy from buildings using piezoelectric cables. The Responsive Environments Group working at the MIT lab invented the Magic Carpet in which electricity is created through piezoelectric wires spaced 4" apart in a grid system on the floor of a room to power appliances.

Our particular device will be composed of the full area of a foot strike instead of the amount of 4" wires the foot strike impacts. The Magic Carpet could build up a charge of 9.5 volts over the course of 20-80 seconds in a capacitor to power our sensor array as well as the display screen. The total area of the Magic Carpet piezoelectrics impacted came out to be 17 cm². However, because our project deals with the impact across the entire area of a foot, our power output will be much greater. To calculate the area we would impact, we need the dimensions of a size 10-1/2 shoe which has dimensions: 27.5 cm length by 10.4 cm wide.



If we take into consideration that work boots are generally larger than running shoes, our average area comes out close to 287 cm². The ratio of our device to the responsive Environments Group's Magic Carpet is as follows:


Therefore our shoes would builds up a charge that is almost 17 times stronger than their charge, at a rate 17 times as fast to reach a charge of 9.5 volts. The Magic Carpet was constructed of Polyvinylidene Fluoride (PVDF). PVDF produces 1.3 mW and PZT produces 8.7 mW with the same amount of applied force. Our shoe is made of PZT, which is stronger. Therefore, not only the ratio of area for power difference, but the difference in material must also be considered. The ratio of our material (PZT) to their material (PVDF) is:



If you take the difference in ratio of power production (about 6.5 : 1) in the material and combine it with the ratio of the area we're covering (about 17 : 1) you get:



As our first responder moves our foot strike produces 110.5 times as much power per foot strike as the Magic Carpet, and provides that power 17 times as fast.

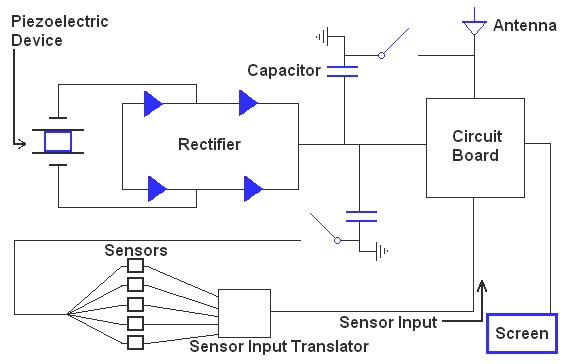

To receive the most power from our piezoelectric setups, we are using a circuit with two different volt sensing switches. Because our piezoelectric shoes would produce a current in two directions, they require rectifiers to change their direction so that they do not draw current from the circuit while expanding.



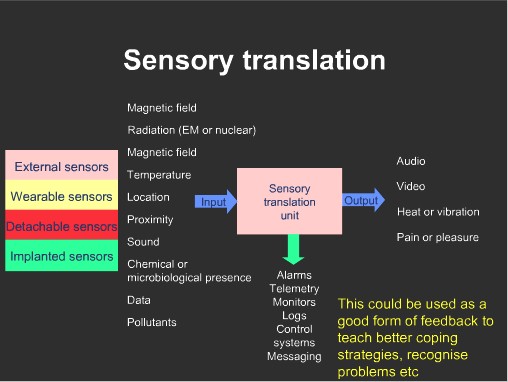

The subsequent DC current then passes to the two capacitors and the circuit board. Capacitors leading to the antenna and the sensors are different. The one leading to the antenna takes 20 seconds to build up the power to relay to the signal from the sensors to the Helikite, while the capacitor leading to the sensors discharge every 5 seconds to allow communication to the circuit board through the sensory translator (see Slide 24).


To eliminate the problem of the current traveling directly through the capacitor because we are receiving a frequency, there needs to be volt sensing switches on either sides of the capacitor. These switches are respectively the same as the capacitors in response to discharging at the correct times, and close the circuit to keep the capacitor charged and stops it discharging prematurely. Once the correct charge is released, the capacitor sends the current to the switch, which closes to complete the circuit to the device(s). The advantage of using volt sensing switches is that power is not always required, and allows us to use power in bursts. The power not consumed by the capacitors travels to the circuit board, which takes messages received from the Helikite and transmits them to the screen, which is receiving its power through the circuit board. The circuit board also contains a small rechargeable device that keeps the power to the screen on, and has the ability to draw from the charge on the capacitors in the event the first responder stops creating a force on the shoes.

The demand of our system would be out of the range of feasibility without several specifications unique to our design. This allows us to make the most use out of the little power we can generate. Because there wouldn't be a significant difference for the headquarters to make a decision based on information within 20 seconds, we are saving 20 times the power by not sending it every second. We are also only updating sensory information to the screen every 5 seconds due to the fact that it also would not make a significant difference for the first responder to see conditions in real time information, saving us 5 times the power by not sending every second. The screen also contains a brightness feature that allows the first responder to turn the screen brightness down whenever lighting from natural sources are enough to make features of the screen visible. The settings of 5 and 20 seconds were chosen so that they overlap whenever 20 seconds occurs, and is enough of a time interval to display accurate information without being real time. To keep the capacitors and battery charged for every 20 second message sending, the wearer should walk at least 9 footsteps every 20 seconds, with the average person waling at a pace of 25-30 steps at a casual walk. The small rechargeable battery located on the circuit board allows for the signals to be received via the antenna, and helps power the screen in situations when power supplied to the system reaches a low point. The battery should be charged several seconds before the screen actually starts functioning, which is about fifteen footsteps.

Zhong Lin Wang, a scientist at Georgia Tech, has created a fabric that can generate electricity, by rubbing together microfibers that are coated with zinc oxide and gold. The direction the fibers go, depends on the coating they receive.

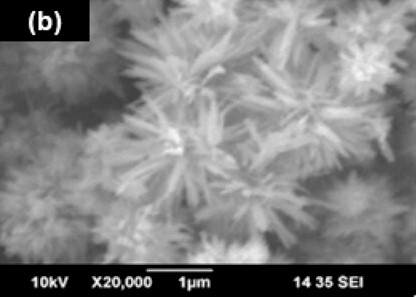

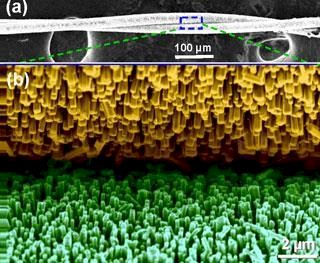

These microfiber generators are made of crystals that are grown into the fabric by immersing it in a zinc oxide solution for a period of time. Zinc-oxide nanowires have been "grown" onto strands of Kevlar nanofibers, and then a polymer is added to the tips helping the nanofibers to remain attached to the fabric. Covering some of the fibers in gold and pairing them with a zinc oxide fiber completes the assembly process for microfiber generators. In the diagram below, the top fibers are coated in gold, and the bottom fibers in zinc oxide.


These gold fibers serve as a Schottky barrier, which means they make the energy generated go in one direction, thus helping to store it. They can then rub together to produce electricity from mechanical energy using what is known as the piezoelectric effect. This piezoelectric effect is performed by certain non-conducting materials when mechanical stress placed on them is converted into electrical energy.

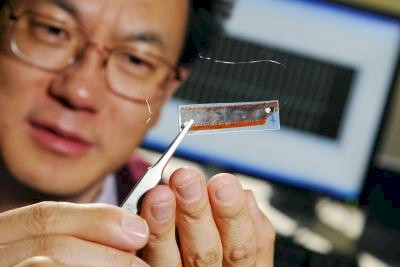

These microfiber generators can put out 80 milliwatts per square meter of fabric (enough for a cell phone or ipod). In the next picture, Zhong Lin Wang is holding up two microfiber generators in a slide. The second picture is zoomed in on the tips of the microfiber generators.


The microfiber generator is actually an expansion of Zhong Lin Wang's previous invention, the nanowire nanogenerator. This nanowire nanogenerator was made out of rougher materials. Instead of gold fibers as the electrode, a different material containing platinum tips was used. One problem still existed, the microfiber generator was not waterproof.

Zhong Lin Wang recently invented a new generator known as the flexible charge pump, which generates electricity by being stretched. Like the previous generator, this flexible charge pump is made up of zinc oxide wires and a shottky barrier to control the energy flow. This new flexible charge pump, however, is encased in a polyimide which makes the pump waterproof and more durable. A physical vapor decomposition method at 600 celcius creates zinc oxide wires. These wires are then tipped with a paste serving as the electrode, and encased in a polyimide. A polyimide is a group of extremely strong and durable (heat, chemical, radiation resistant, etc.) polymers often used for tough jobs in items such as microwaves or vehicles.When the pump is stretched the zinc oxide wires produce an electrical charge, due to the piezoelectric effect, which runs in and out of the pump thus producing energy. The pump puts out about 45 millivolts and is not on a nanometer scale (3-5 microns diameter, 200-300 microns in length). In the picture below, Zhong Lin Wang is shown holding up flexible charge pump. The second picture is zoomed in on the flexible charge pump.


It can be made larger due to better efficiency and easier construction. The pump could be connected, layered, and put in clothing or even in the body. If put in the body, the pump could power multiple sensors used to do things such as monitoring blood pressure. The next pictures illustrate how a flexible charge pump would be constructed and a micrograph of an actual pump.


Zhong Lin Wang has received funds towards his research totaling $18 million US dollars over the past 13 years. The companies that funded him were National Science Foundation, Department of Energy, Defense Advanced Research Projects Agency, National Aeronautics and Space Administration, National Institute of Health, China NSF, and industry.
