Navigation Electronic Aides

There are many electronic navigation aides available to towboat pilots that can supplement the continuously updated nautical charts supplied by the Army Corps of Engineers. The charts delineate obstructions in the changing riverbeds and the locations of river locks.

Farsounder, a brand of forward looking echo sounders, displays the seafloor and underwater obstacles in three dimensions. The current commercial product is the FS-3 and the upcoming generation is the FS-3DT with greater range for obstacle detection. The FS-3 image is created with a single ping and is updated every two seconds. It allows the towboat-barge navigation system to know the range, bearing, and depth of all obstacles ahead of and around the vessel. It operates at 60 kHz and has an accuracy of 1.6 degrees. The system includes a hull-mounted transducer, power module, and a graphical user interface which can be executed on a regular computer. The display includes chart overlay, vertical slice, volumetric display with color mapped to depth, user selectable depth and detection thresholds. A user enabled alarm alerts the presence of underwater obstacles. The system can incorporate NMEA GPS, speed, sounder, and heading data.

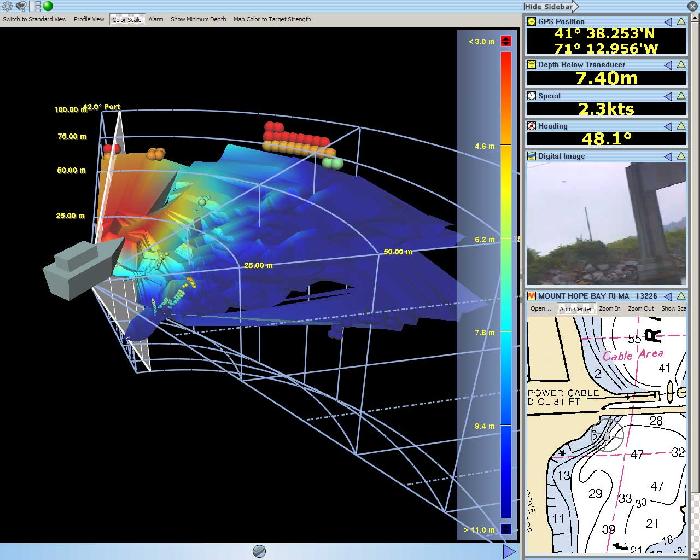

Below is an example of the display screen showing shallow water on the port side as the ship approaches a bridge piling.



The SeaBeam 1185, an echo sounder, is excellent at collecting depth measurements and channel data in shallow water. Well suited for use on river barges, it provides riverbed coverage as great as 400 meters wide and 300 meters deep.

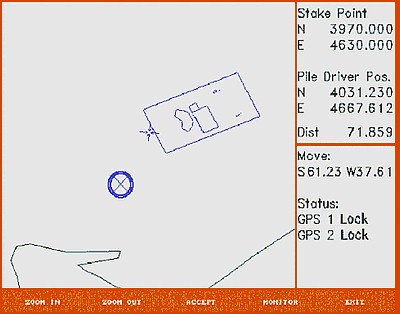

This multi-beam survey sonar system runs on any computer featuring Windows XP or UNIX/LINUX. It includes real-time motion compensation as well as a special transmission mode called Rotational Directional Transmission that makes it an important tool in detecting small-scale objects. RDT is also beneficial when surveying areas where rock, sand, and mud are in close proximity. The HydroStar is a GPS based marine survey and navigation product used on barges and towboats. Two GPS receivers are placed on the barge unit, one in the front and one in the rear, to enable orientation of the barge unit in plain view. The product is designed to gather data points in the environment and it uses model of underwater surface (calculated by depth sounder) with plain view to navigate to a desired point. The depth sounder maps the riverbed and the two GPS receivers give a plane view (map) of position, direction, and obstructions such as bridges, piers, shorelines, etc. There is a map overview and an underwater view given on two screens. The system can be used on a regular laptop.

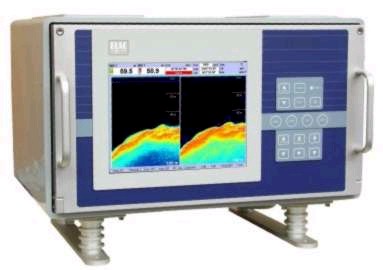

The HydroStar 4900 is an echo sounder which can generate a view of the riverbed. It offers precise data, a resolution of 2.5 cm (depending on the depth), a sediment classification sensor, and functions on a standard interface of DGPS on a Windows operating system. It operates at a frequency of 10 kHz to 1 MHz and a range of 10000m.



Produced by Concord Marine Electronics, the MX420 Navigation System is a shipboard broadcast transponder system in which ships send and receive identification, position, course, speed, and other such data to nearby ships and shoreline authorities on a common VHF radio channel using Automatic Identification Systems. AIS is designed to operate in one of the following modes:

• In a ship-to-ship mode for collision avoidance (primary, autonomous)
• As a means for coastal states to obtain information about a ship and its cargo
• As a traffic management tool when integrated with a Vessel Traffic System (VTS)

The ship-to-ship mode is autonomous, and are transmitted every few seconds. AIS can incorporate the VTS system to provide continuous radar coverage as shown below.





Similar to HydroStar, the MX420 incorporates GPS navigation by the GPS signal synchronization of multiple data transmissions on a single narrowband channel. MX420 is a device designed to prevent ships from colliding with each other and crashing upon the shore. It is not a guidance system for river navigation. Thus AIS is more of a safety system than an actual navigation system, although communication between ships and shoreline stations are greatly improved. AIS is currently only required on vessels that travel on international waters. It is likely that port states will soon require AIS devices to be installed on tug-barge combinations.

---
