A Curious Construction
 |
Many mathematicians have been interested in ways to construct the number pi (π). In the drawing, triangles ABC and ADE are right triangles. The length of AB = 1. The length of BG gives a decimal approximation of pi (π) to six decimal places. Complete all calculations to 7 decimal places. |
1. Use the length of BC and the Pythagorean theorem to find the length of AC. | |
2. Find the length of AD. |
|
3. Use the length of AD and the Pythagorean theorem to find the length of AE. |
|

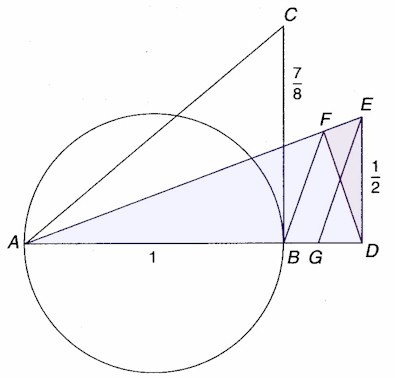

4. The sides of the similar triangles FED and DEA are in proportion. So, FE/0.5 = 0.5/AE. Find the length of FE
|
|
5. Find the length of AF |
|

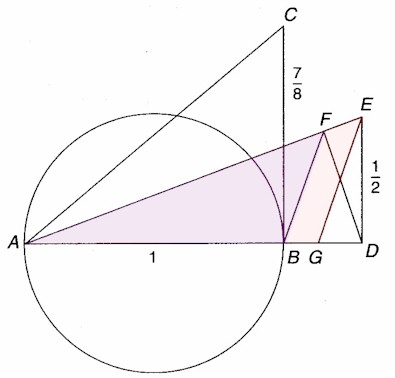

6. The sides of the similar triangles AFB and AEG are in proportion. So, AF/AE = AB/AG. Find the length of AG.
|
|
7. Now, find the length of BG. |
|
8. The value of pi (π) to seven decimal places is 3.1415927 Compare the fractional part of pi (π) with the length of BG. |
According to the teacher's manual, BG = 0.1415929 |
| Geometry memories: Why were the triangles in Step 4 and in Step 6 similar? | |
